Minute-Time Switch Model 201
General Features:
- Spring wound timer breaking an electric circuit after pre-set time period.
- Timing Range: 1, 4, 10, 15, 20, 35, 45 y 60 minutes.
- Model SPST: Simple-Pole, Single Throw: ON-OFF type: mechanism actuates between two states, open or closed. The two terminals are either connected together or disconnected from each other.
- Model SPDT: Single-Pole, Double Throw: mechanism connecting either of two terminals to the common terminal. A simple changeover switch.
- High temperature housing available on special order.
Accesories
- Black-coloured plastic knob.
- 130 mm cables
- 5/32 x 3/8 screws
- Anodized blue ring
- 60, 30, 20, 15 and 10 minute displays
Specification
- Electrical Features: 8 A, 110-220 VCA. 1/3HP SPST- SPDT.
- Hold Feature: when knob is turned to Hold position, current is ON, but timing mechanism remains stopped.
- Built in clutch in output shaft.

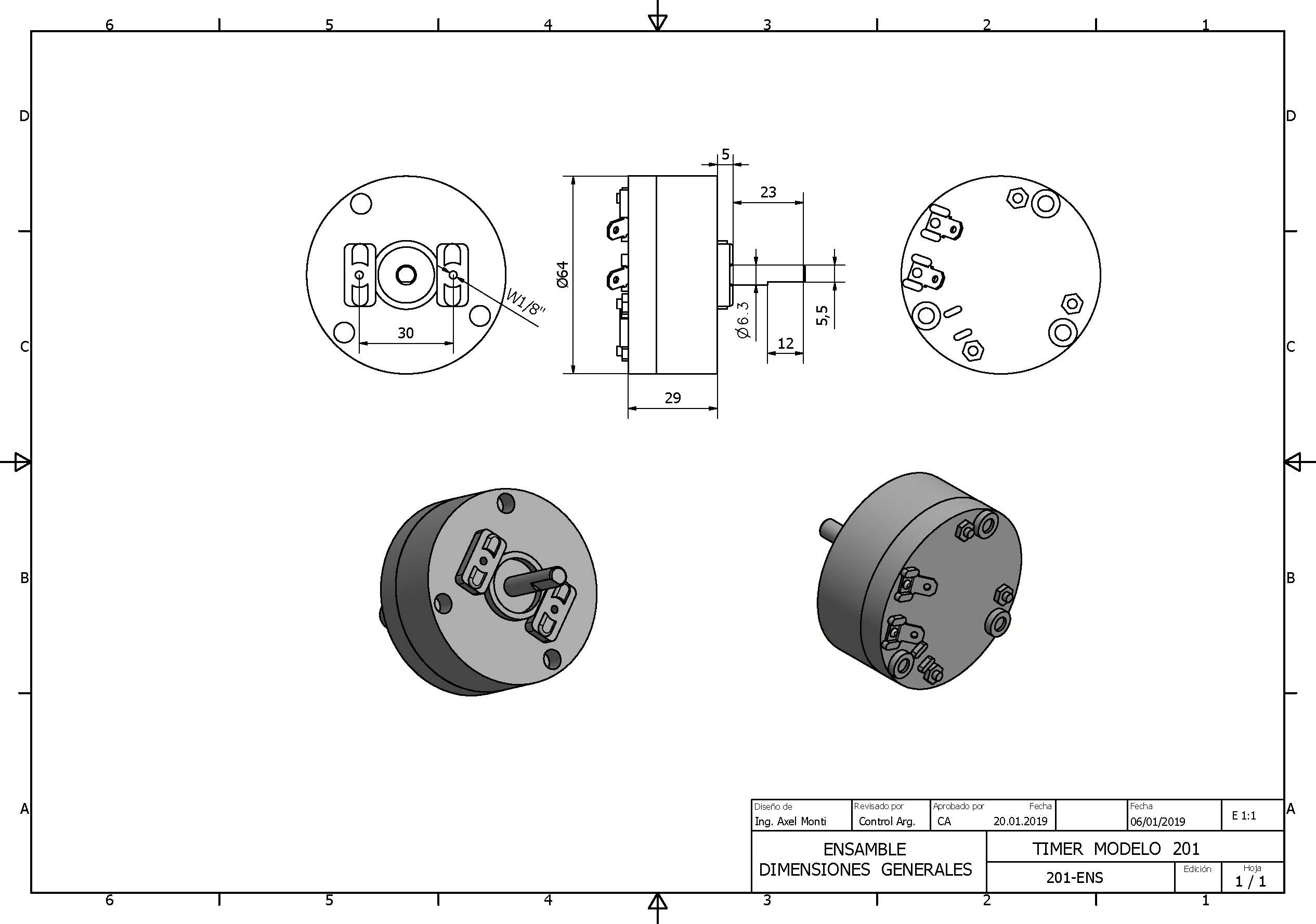

- Size: Diameter: 65mm Height: 33.5 mm.
- Mounting: Two fixing threaded holes placed at 30 mm between them.

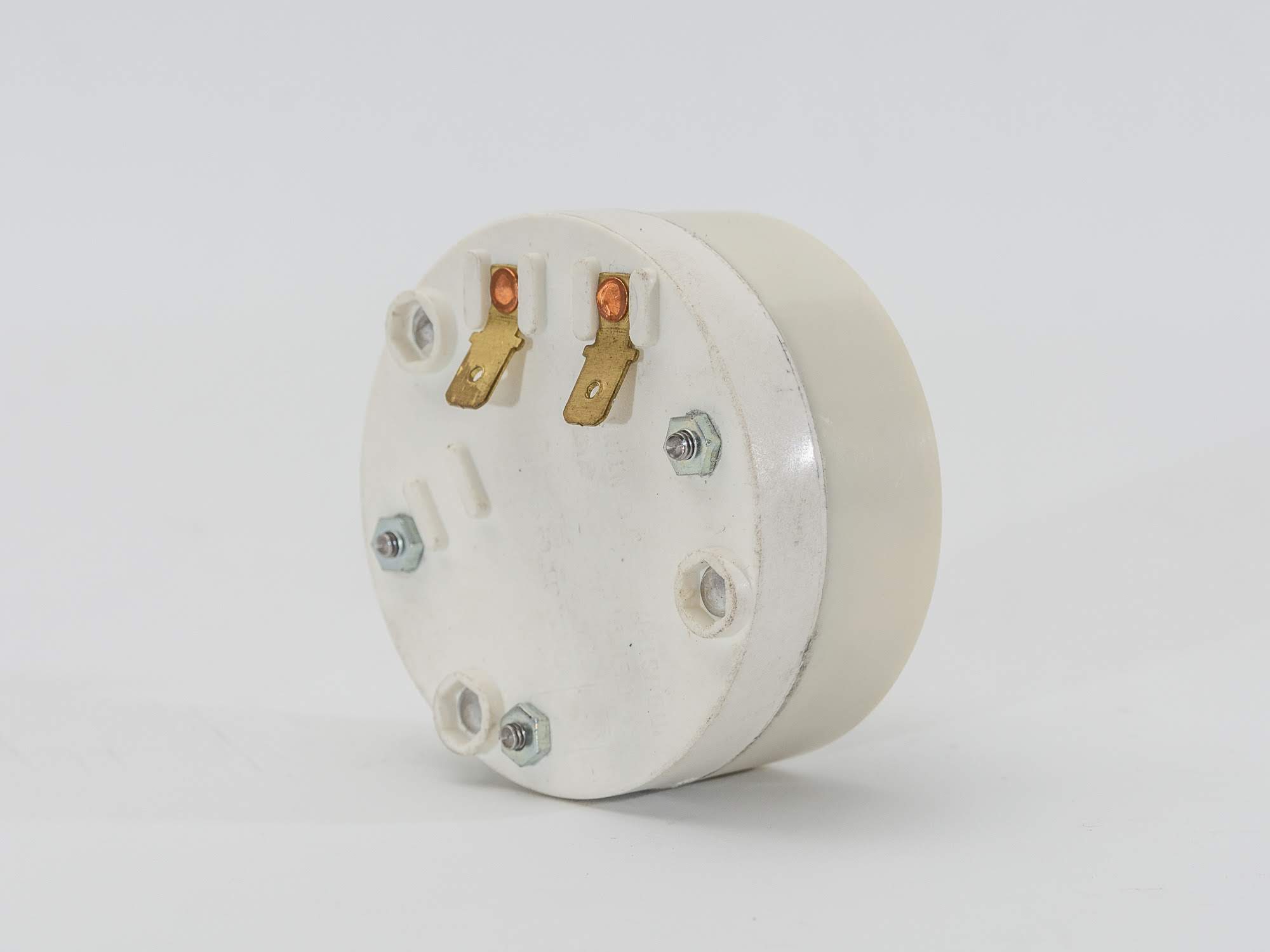

- Spade terminals: for quick connect and disconnect.
