General Features:
- Permanent magnet rotor which delivers high-torque performance at high speeds.
- Motor and gearbox in one single unit.
- Standard Voltage: Alternated Current: 110V, 220V, 24VAC.
- Motor Speed (no load): 500 RPM (50Hz).
- Frequency: 50 Hz/ 60Hz.
- Insulation Grade: Class F (155 oC).
- Coil Quality Standards: Insulated Copper Wire, IEC 60317-20/ NEMA NW1000-79C.
- Power Output: 4 Watts.
- Dieletric Strength: 1500VCA - 1min.
- Starting Torque: 7 kgcm (at 1 RPM).
- Standard and heavy duty gear box are designed under strict quality standards with hardened steel shafts and 1.5mm thick brass gears to ensure reliable torque units and smoothness operation during service.
- Equipped with sintered bronze bearings for continuous duty.
- Long life, maintenance free.
- Wide range of output speeds, from 60 RPM upto 1 RPM in 7 days.
- Coil temperature: designed to a 65 oC ambient temperature overheat when operated in recommended service specification.
- 14 different output shafts available.
- Weight: 140 gr.
- Product Quality Standard: IRAM Certificate № S-2346/002-1: IEC 60335-1.
Applications
- Exhibitors and rotating displays, automatic controls, timing devices, etc.
Before ordering, please indicate:
- Voltage and frequency.
- Output shaft speed (RPM) .
- Rotation shaft end: CW or CCW.
- Type of shaft.
- Torque needed.

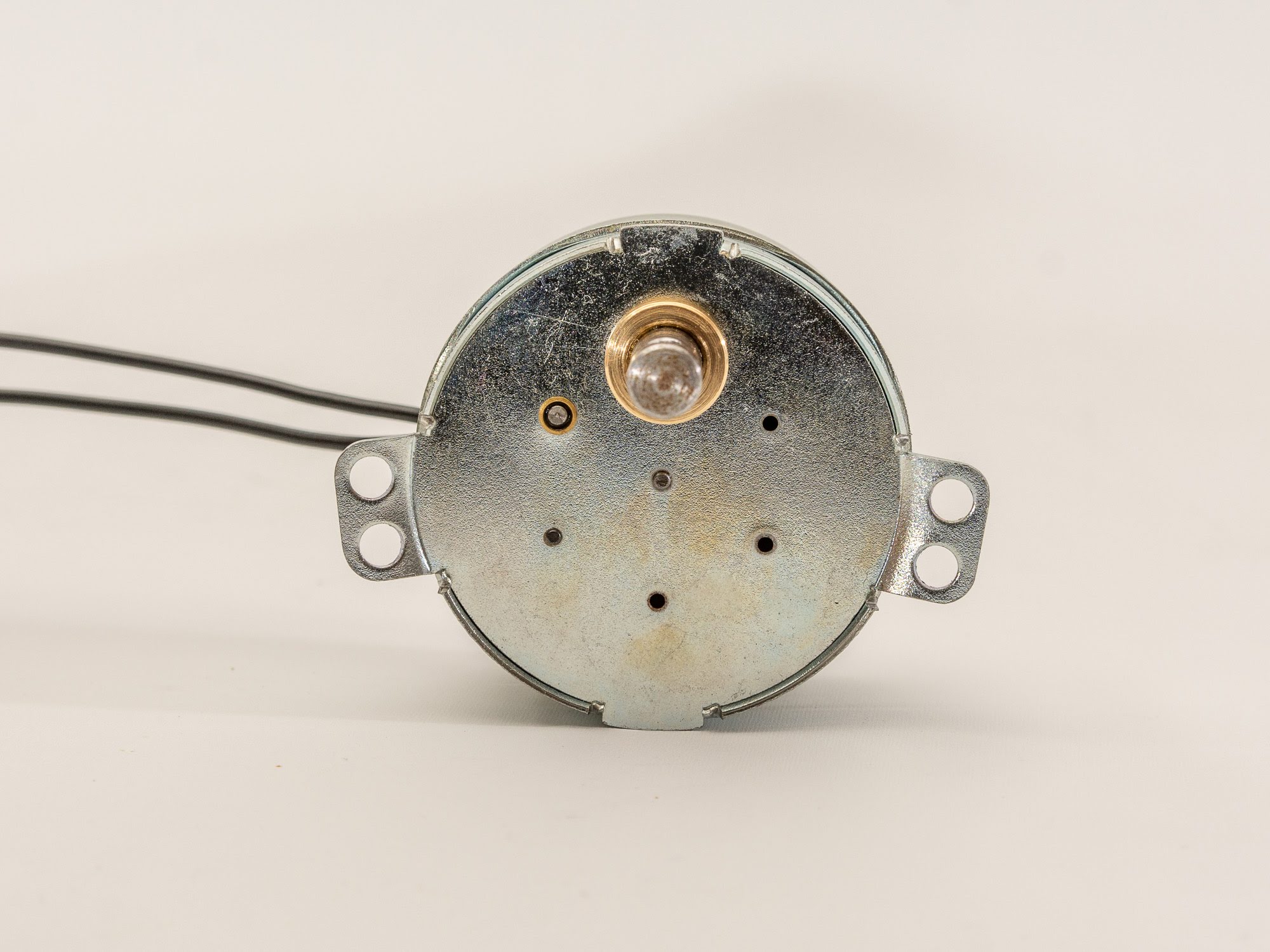

-054.jpg)

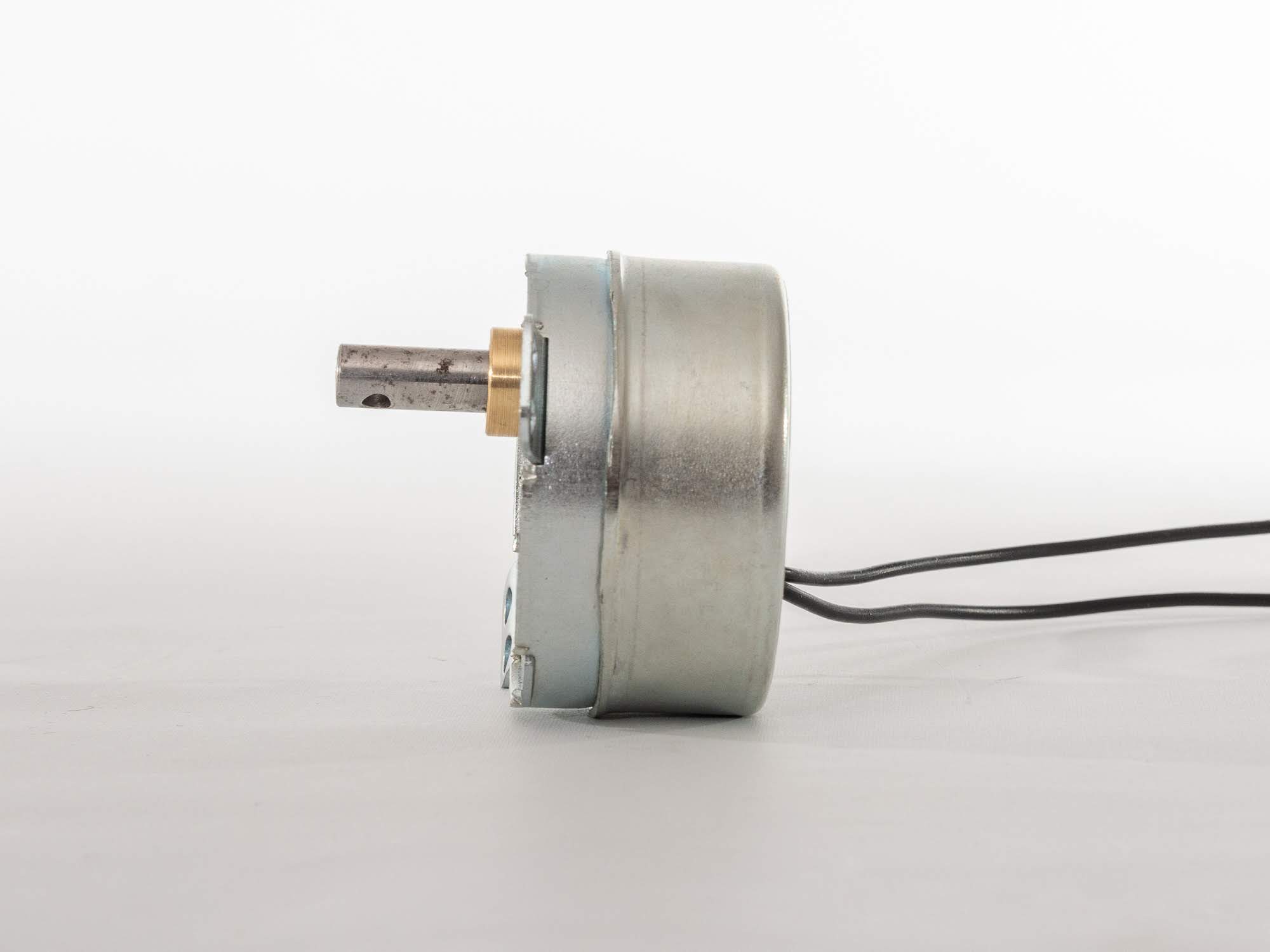

-055.jpg)
