General Features:
- Reliable life-time lubricated Asynchronous Shaded Pole Gearmotor.
- Standard Voltage: Alternated Current: 110V, 220V, 24VAC or bivolt 110/220V.
- Motor Speed (no load): 2900 RPM (50Hz).
- Frequency: 50 Hz/ 60Hz.
- Current rated: 0.41 A.
- Starting Torque: 43 kgcm (at 1 RPM).
- Insulation Grade: Class F (155 oC).
- Coil Quality Standards: Insulated Copper Wire, IEC 60317-20/ NEMA NW1000-79C.
- Dieletric Strength: 1500VCA - 1min.
- Heavy duty gear box designed under strict quality standards with hardened steel shafts and 3mm thick brass gears to ensure reliable torque units and smoothness operation during service.
- Equipped with sintered bronze bearings for continuous duty.
- Wide range of output speeds.
- Different output shafts available.
- Coil temperature: designed to a 70 oC ambient temperature overheat when operated in recommended service specification.
- Weight: 1.400 kg.
- Product Quality Standard: IRAM Certificate № S-2346/001-1: IEC 60335-1.
Before ordering, please indicate:
- Voltage and frequency.
- Output shaft speed (RPM) .
- Rotation shaft end: CW or CCW.
- Type of shaft.
- Torque needed.

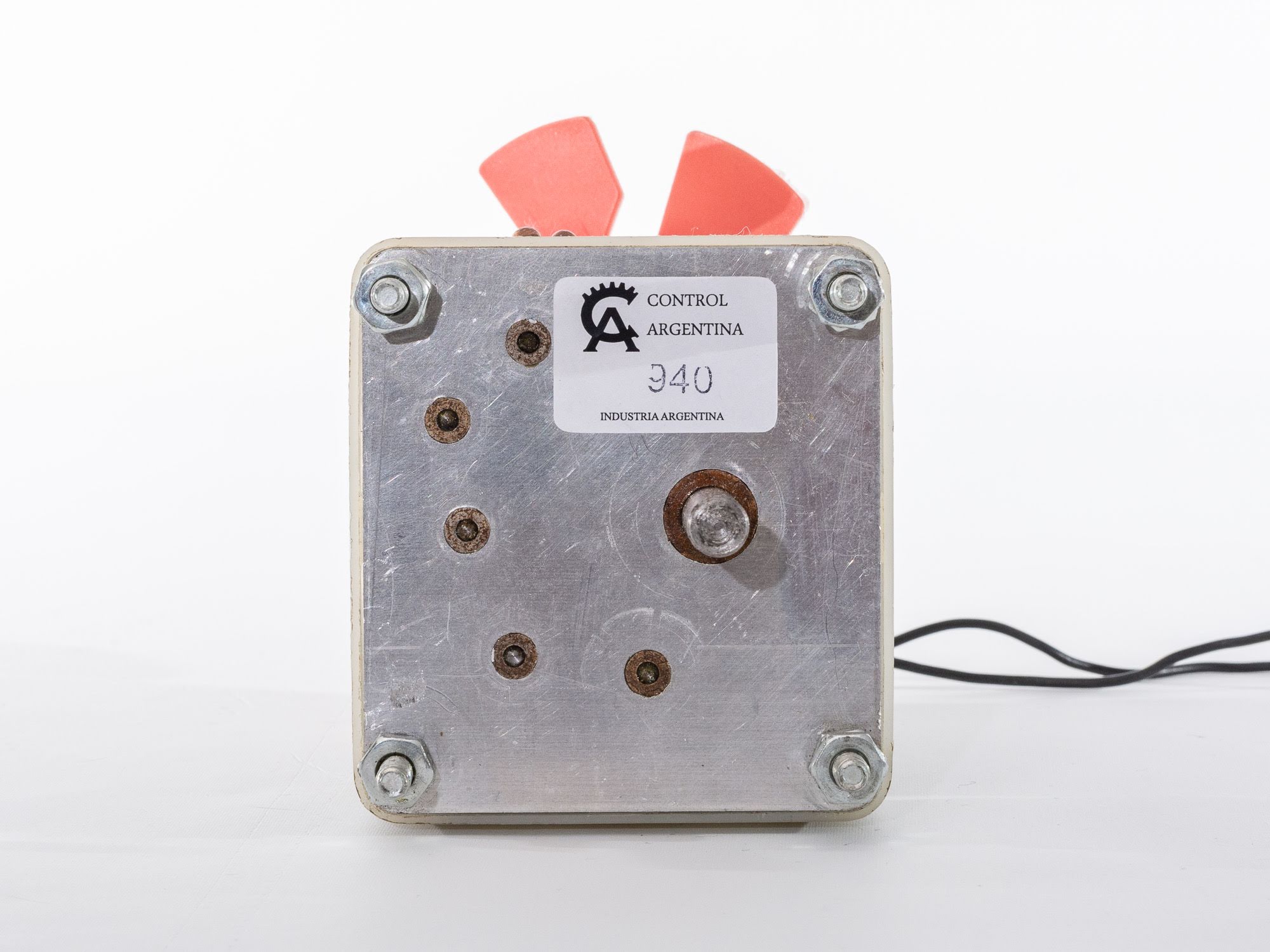

-076.jpg)

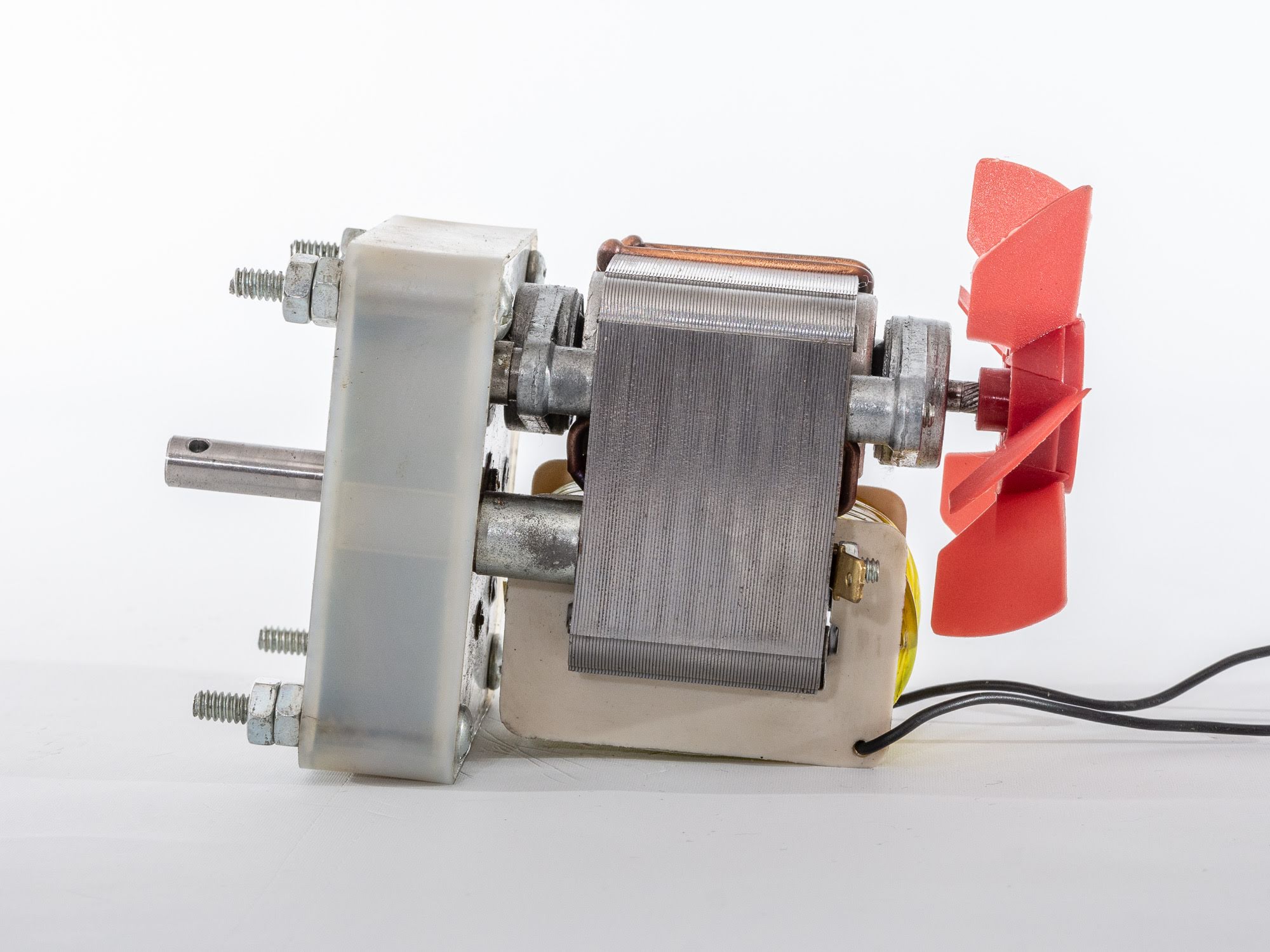

-078.jpg)

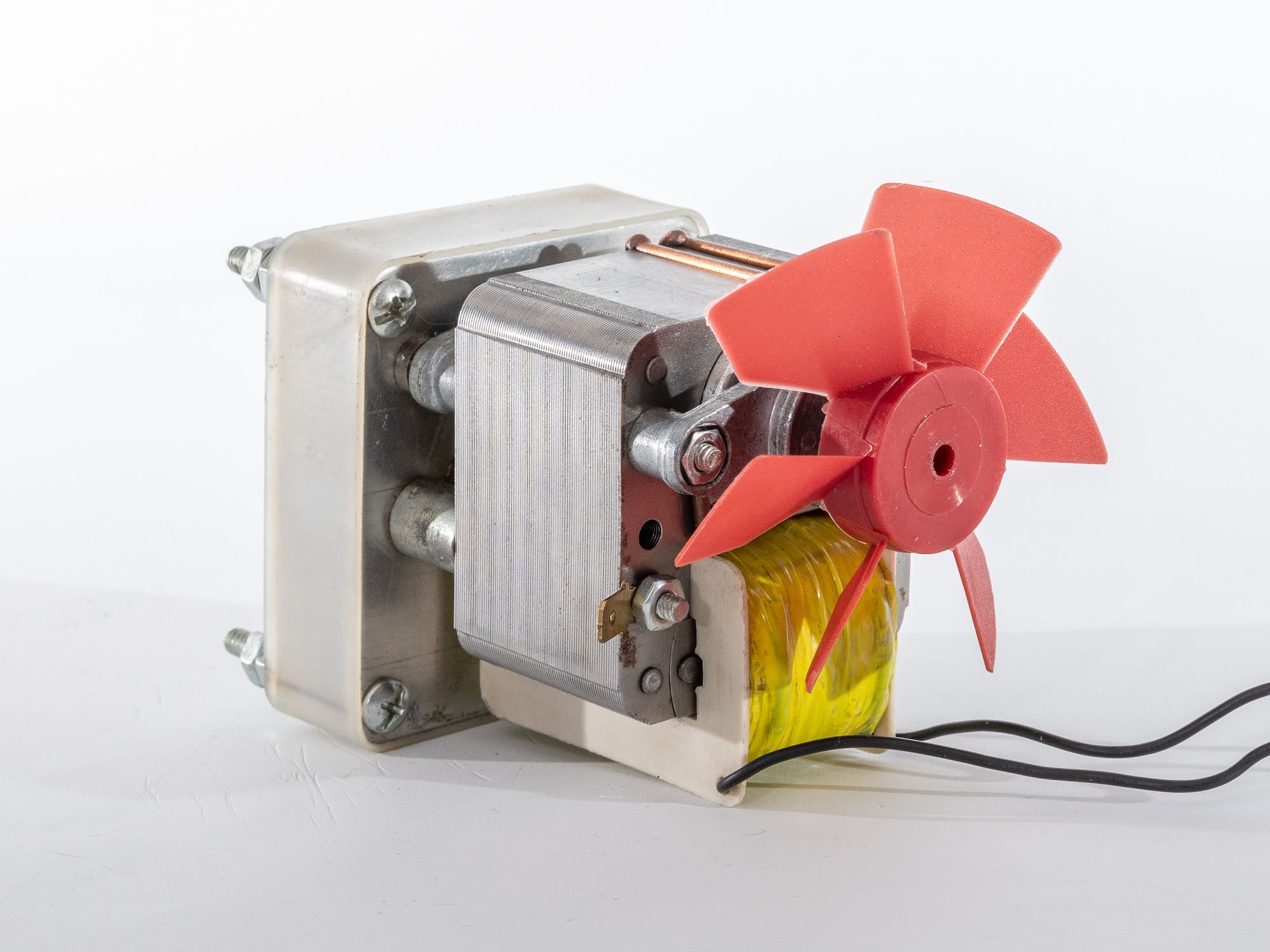

-079.jpg)
