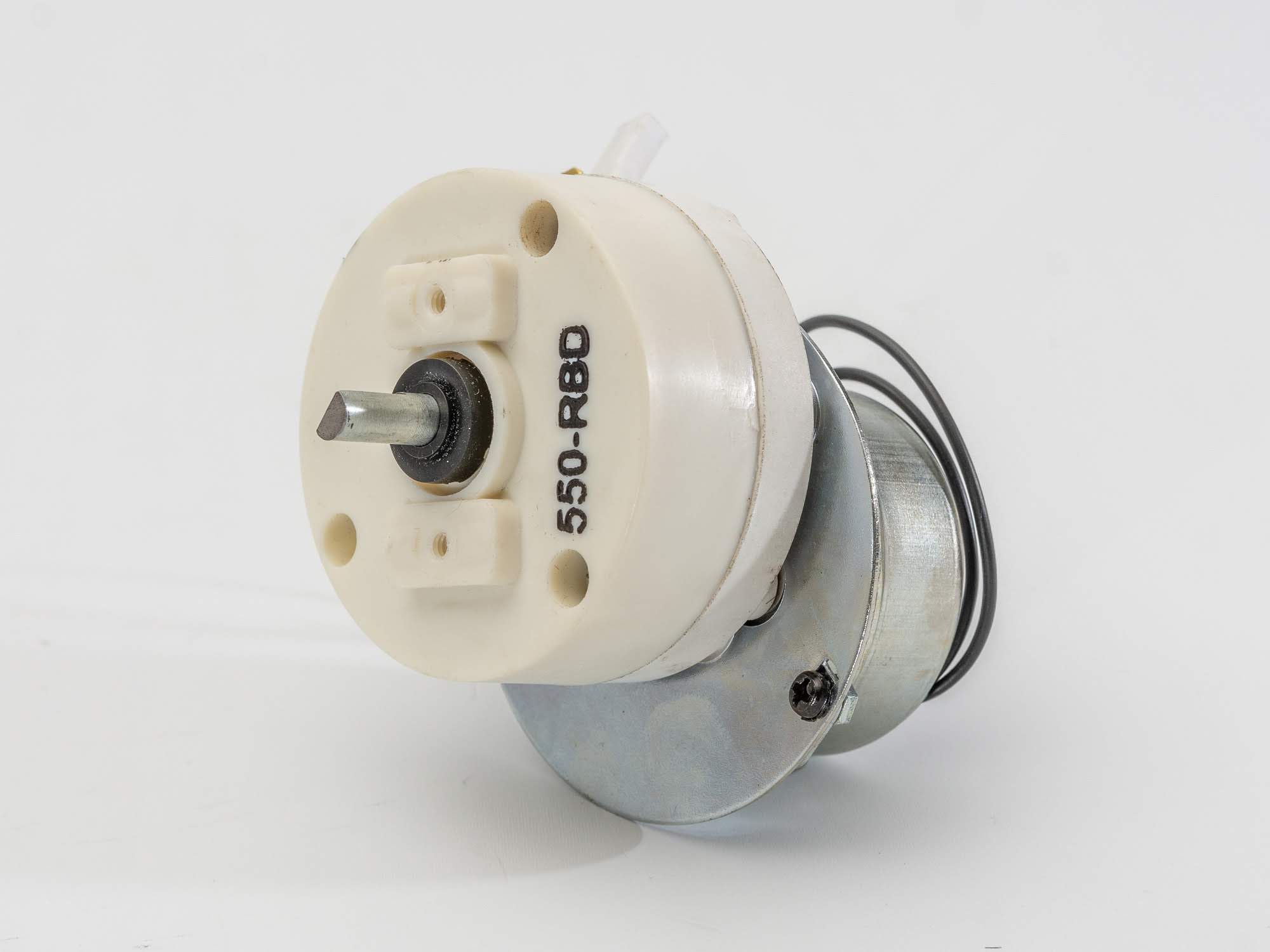

Electromechanic Gearmotor timer breaking an electric circuit after pre-set time period.
- Timing Range: 1, 2, 3, 6 hours.
- Model SPST: Simple-Pole, Single Throw: ON-OFF type: mechanism actuates between two states, open or closed. The two terminals are either connected together or disconnected from each other.
- High temperature housing available on special order.
Accesories
- Black-coloured plastic knob.
- 130 mm cables
- 5/32 x 3/8 screws
- Anodized blue ring
Specification
- Electrical Features: 20 A, 110-220 VCA. 1/2HP SPST.
- Built in clutch in output shaft.
- Size: Diameter: 65mm Height: 78 mm.
- Mounting: Two fixing threaded holes placed at 30 mm between them.
- Spade terminals: for quick connect and disconnect.

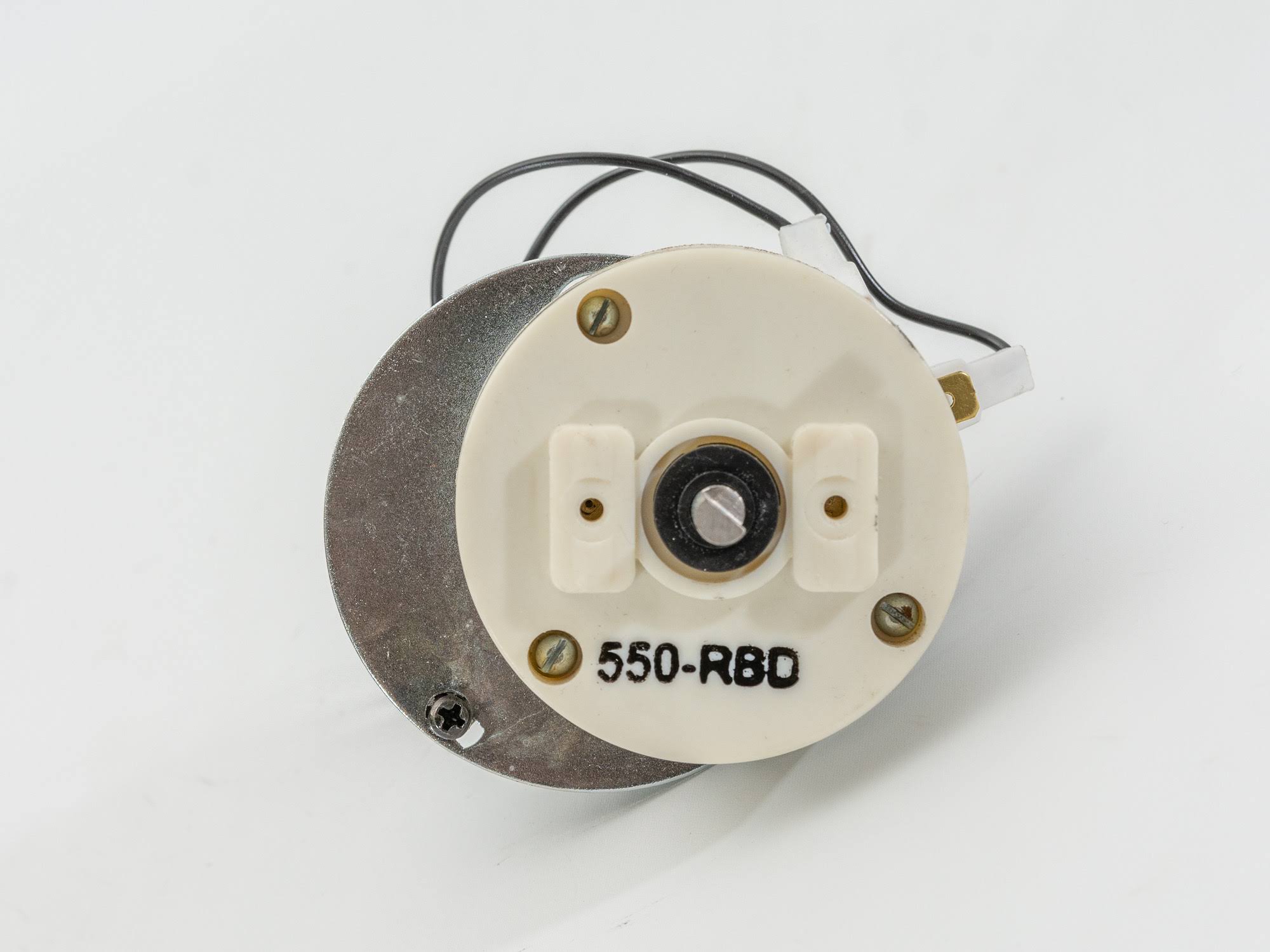

-056.jpg)

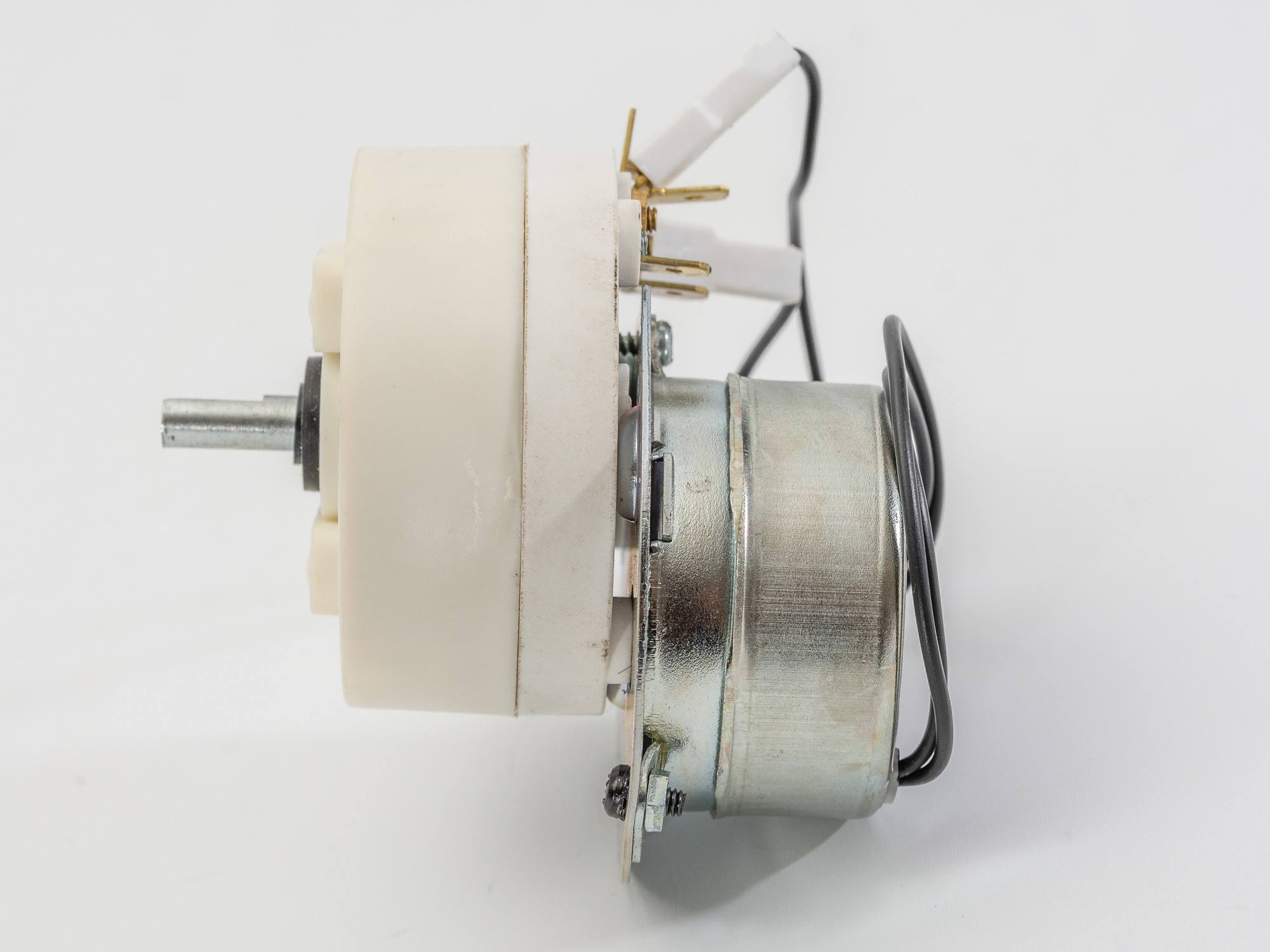

-058.jpg)
